@grantmcdermott grantmcdermott commented Nov 19, 2025

Fixes #511

pkgload::load_all("~/Documents/Projects/tinyplot")
#> ℹ Loading tinyplot
library(broom)

coefs = tidy(lm(mpg ~ wt + drat, mtcars), conf.int = TRUE)

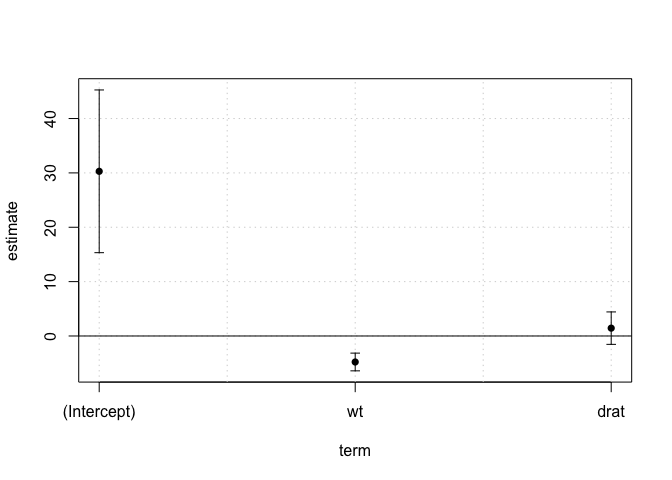

plt(
  estimate ~ term,
  ymin = conf.low, ymax = conf.high,
  data = coefs,
  type = "errorbar",
  theme = "basic"
)
plt_add(type = 'hline')

Created on 2025-11-19 with reprex v2.1.1

Two notes:

  • The immediate solution to the above example is realizing that we don't need to calculate the axis limits again for secondary plots layers (i.e., where add = TRUE). We skip those cases now per cb6c156.
  • For the more general solution—not limited to add cases—I'm coercing to numeric before getting the axis range in lim.R. This seems to work fine and doesn't break any tests; partly because we already coerce character x and y variables to factors in sanitize_data.R. But I'm flagging it as a mental touch point in case it does end up breaking something down the line.

@grantmcdermott grantmcdermott changed the title coerce axis vars to numeric for range (test) Axis range for non-numeric vars Nov 19, 2025
@grantmcdermott grantmcdermott marked this pull request as ready for review November 20, 2025 00:11
@grantmcdermott grantmcdermott merged commit cabb7ec into main Nov 20, 2025
3 checks passed
@grantmcdermott grantmcdermott deleted the axis_factor_range branch November 20, 2025 00:18
grantmcdermott added a commit that referenced this pull request Nov 20, 2025
grantmcdermott added a commit that referenced this pull request Nov 20, 2025
* force legend eval to avoid downstream symbol (promise) issue

* also need list handler

* move `sanitize_legend` to own file while we're at it (like other sanitizers)

* fix test errors

* simplify sanitize_legend

* ancilliary simplification

* add test

* test for #513 while we're at it

* news
